BAT.MAN Ai 無線サブバッテリー モニター

Features BAT.MAN Ai 無線サブバッテリー モニター

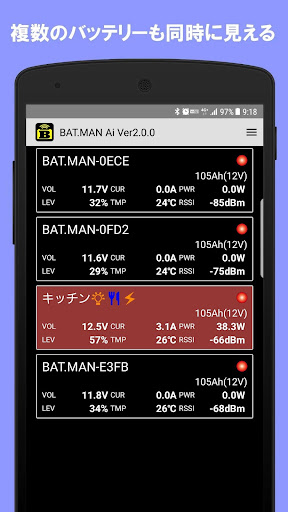

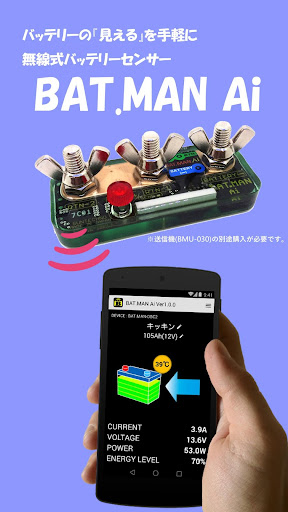

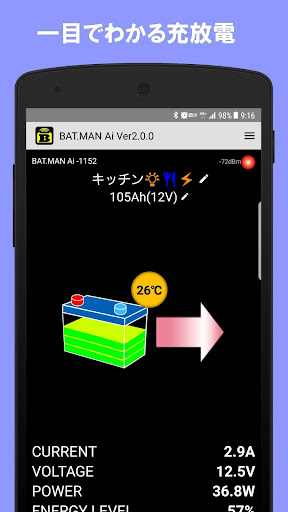

Sub-battery wireless monitor app for campers and ships.You can see voltage, current, power, temperature, and energy amount at a glance!Installs in 5 minutes, requires no wiring, is dustproof and waterproof, and can be monitored anywhere in the drivers seat, wheelhouse, or cabin.○Battery sensorProduct name: BAT.MAN AiModel number: BMU-030Manufacturer: Sun Techno Co., Ltd.○Compatible modelsOS version: Android11 ​​or later (Bluetooth 4.0LE compatible model)○What is BAT.MAN?In recent years, with the spread of camper vans in Japan, electrical equipment (microwave ovens, air conditioners, lighting, audio equipment, etc.) has also become more luxurious, but the power consumption of camper vans places a heavy burden on sub-batteries, causing problems for users.Also, although the number of users who are installing solar panels is increasing, we also hear that they are unable to tell the charging status of the battery.BAT.MAN is palm-sized and can be easily attached to the sub-battery without tools.After installation, voltage and current are transmitted to your smartphone using Bluetooth radio.　This app processes the received data and displays the battery voltage, current, power consumption, energy level, charging/discharging status with animations and numbers.Traditional monitor systems require a component called a shunt resistor to measure battery current.　This shunt resistor generates a small voltage corresponding to the current, and by measuring this it is possible to determine the current, but it is very large and generates heat, making wiring difficult.BAT.MAN is equipped with a small current sensor inside and can measure up to 200Apeak, and generates less heat than a shunt resistor.　For this reason, BAT.MANs body is compact and has a unique shape that protects all electronic components from vibration, moisture, and dust by sealing them in resin.○Please noteFor safety reasons, this system cannot be used with batteries for driving or starting the engine.(Dedicated to sub-batteries for campers, ships, etc.)Features〇 Quick connectionImmediate display starts immediately after startup.○Multiple BAT.MAN displayThe multi-battery system is equipped with sub-batteries for each function such as kitchen, lighting, and audio, allowing you to simultaneously monitor information on up to 10 BAT.MAN devices with one smartphone.〇 Monitoring with multiple smartphonesOne BAT.MAN Ai can be monitored on multiple smartphones at the same time.〇Automatic reconnection functionEven if the connection is cut off due to communication conditions or if you go out of the communication range, it will automatically recover as soon as communication conditions are restored.(Conventional Bluetooth devices required pairing each time)○Warning functionVoltage drop alarm: Alarm sound and vibration warning when the voltage drops below the set voltage.Overload alarm: Warning when the load current exceeds the allowable current (195A).〇Since the temperature of the connection part with the sub-battery can be monitored, it is possible to check the temperature rise due to the amount of current or abnormal temperature rise due to loose connections.○Energy level display functionDisplays the battery energy status in real time with animation and numerical values ​​(%) from the battery voltage, current, and set battery information (voltage, capacity).However, the energy level of lead-acid batteries should be used as a rough guide, as energy calculations for lead-acid batteries vary depending on factors such as usage time, temperature, and differences in characteristics in addition to the above information.○About reception levelThe reception level indicator displays the signal strength received from BAT.MAN.
The larger the number, the stronger the received signal and the more stable the operation.Example: -80dBm: Signal is weak (bad), -60dBm: Signal is strong (good)〇Battery capacity settingBAT.MAN supports each capacity of sub-batteries and multiple parallel connections.(One BAT.MAN is sufficient for installation on multiple sub-batteries connected in parallel.)The set battery capacity is used to calculate the energy level display.○SPECBAT.MAN Ai bodyMeasurement voltage: 5 to 35V Resolution: 0.1VMeasurement current: ±200Ap-p Resolution: 0.1AMaximum load: 1000W (when using 12V sub-battery), 2000W (when using 24V sub-battery)Operating voltage: 5-35V (compatible with 12V and 24V batteries)Communication distance: Approximately 10m (line of sight)Communication method: Bluetooth 4.0LECurrent consumption: 10mA or less (average)Operating temperature: -10~50℃
